Greenhouse Heating (BTU) & Ventilation Sizer
Compute structural conduction heat losses, infiltration loads, and ASABE summer exhaust fan CFM.

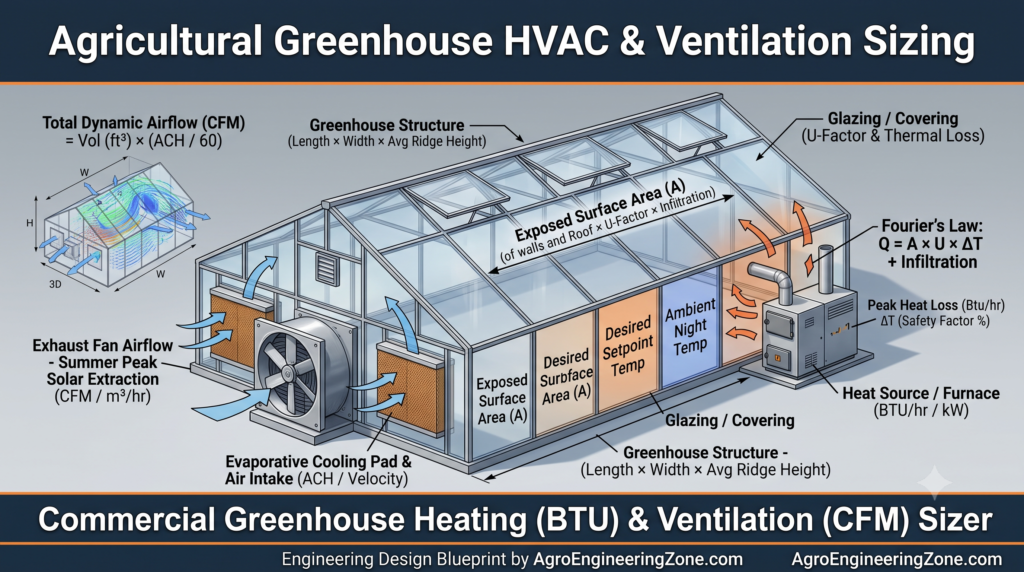

Greenhouse Thermodynamics & Thermal Engineering Fundamentals
Controlled environment structures exhibit significantly higher heat dissipation rates compared to conventional insulated agricultural warehouses due to thin translucent glazing materials needed for photosynthetic active radiation (PAR) transmission.
1. Conduction Heat Transfer Equation
Peak winter furnace sizing relies on Fourier’s law of thermal conduction under steady-state design conditions:
Q_conduction = A_surface × U × (T_inside – T_outside)
Where:
- A_surface: Total envelope surface area exposed to ambient air (walls, gable ends, and roof).
- U: Overall heat transmission coefficient in $W/m^2\cdot K$ or $BTU/hr\cdot ft^2\cdot ^\circ F$.
- \Delta T: The thermal differential between minimal required crop setpoint and local 99% design winter low.
2. Covering Material U-Factors Comparison
| Covering Material | U-Value (Imperial) | U-Value (Metric) | Thermal Efficiency |
|---|---|---|---|
| Single Polyethylene Film | 1.15 BTU/hr·ft²·°F | 6.5 W/m²·K | High Heat Loss |
| Double-Inflated Poly Film | 0.70 BTU/hr·ft²·°F | 4.0 W/m²·K | Commercial Standard |
| Twin-Wall Polycarbonate (8mm) | 0.60 BTU/hr·ft²·°F | 3.4 W/m²·K | Rigid / High Retention |
| Triple-Wall Polycarbonate (16mm) | 0.42 BTU/hr·ft²·°F | 2.4 W/m²·K | Maximum Insulation |
3. Summer Ventilation Sizing (Air Changes per Hour)
Under intense solar radiation, natural conduction reverses into severe heat entrapment. The American Society of Agricultural and Biological Engineers (ASABE) mandates a baseline ventilation rate of **0.75 to 1.0 air volume changes per minute (45 to 60 ACH)** for unshaded active greenhouse cooling:
Required Airflow (CFM) = Greenhouse Interior Volume (ft³) × (ACH / 60)
In pad-and-fan evaporative systems, maintaining an air velocity between 2.5 and 3.0 m/s across wet cellulose pads preserves relative humidity without elevating static back-pressure on exhaust fans.
